LD-FMK-4085 85W Flying Style Manufactured Date And Serial Code
Fiber Laser Marking Machine

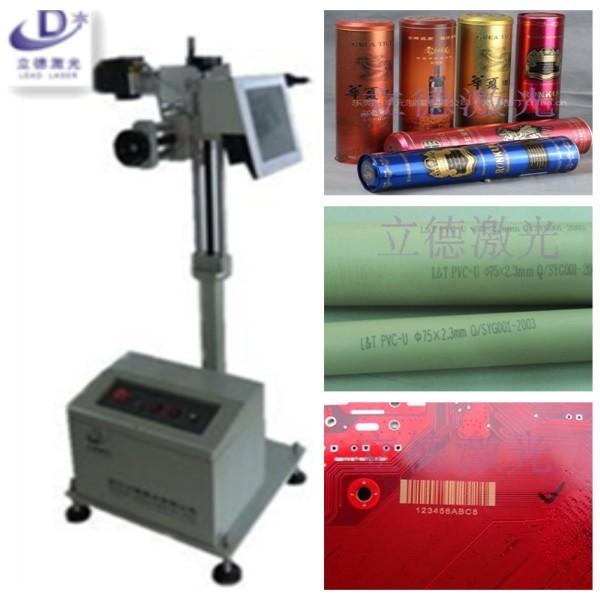

Details of Fiber Laser Marking Machine
Features:
Pulse fiber laser source,long lifetime(100000 hours/around 22 years
if 12 hours working time per day) without consumables,cost
effective
Professional and powful control system.It can mark
logo,character,serial number,bar code and data matrix on both
metals and some non-metals.It can meet different marking
requirements.
English operation interface with easy operation.
Fast marking speed,high marking precision
Permanent marking,wont be wiped out by sun or rain,convenient to
trace.
Product Description:
The Fiber laser date code machine adopts the top laser technology
in the world wide. The fiber laser outputs the laser and scanner
system finishes the scanning process.The fiber laser is air cooled,
and it has the advantage of high electric-optic efficiency, small
in size, good beam quality and high reliability. It can mark on all
kinds of metal surfaces and some of the non-metal surfaces.
Suitable for processing the need engraving, smoothness and
accuracy, such as barcode, two-dimension code, graph and character
marking. We can supply the fiber laser marking machine at 10W, 20W
and 50W, also we can make the machine at the customer’s required
technological data.
Applications:
Widely used in industries of plastic key-press, Silicon Rubber
key-press, communication, electronics, vehicle parts, IT, IC,
precise accessories or metal products, electric appliance, glasses,
watch and clocks, apparatus, or art craft, etc.
Technical parameters:
Model No. LD-FMK-4085 Fiber Laser Marking Machine
Laser Power 85W
Wavelength 1064nm
Beam quality M2 <1.5
Adjusting Q frequency 20—100KHz
Marking range (mm) 100×100
Marking depth ≤0.1mm
Linear speed ≤9000mm/s
Min line width 0.008mm
Min character 0.3mm
Repeat accuracy ±0.001mm
Power supply 220V±22V/50Hz /7A
Overall power consumption 200W
Main machine dimension 535 mm X435 mm X710 mm
Weight of Whole machine 60KG
Control system dimension Integration
