    Automatic Fiber Laser Marking Machine Wavelength 1064nm Maintenance - Free

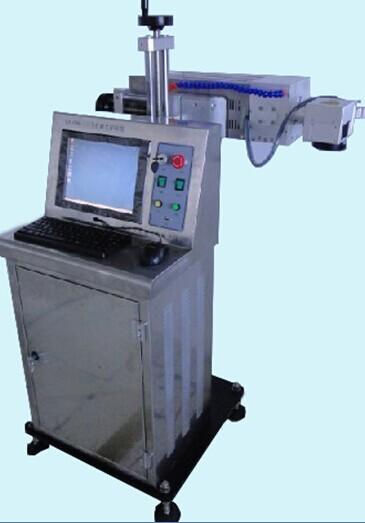

    LD-FMK-4075 75W Flying Style Manufactured Date And Serial Code Fiber Laser Marking Machine


    Product Description:


    The Fiber laser date code machine adopts the top laser technology in the world wide. The fiber laser outputs the laser and scanner system finishes the scanning process. The fiber laser is air cooled, and it has the advantage of high electric-optic efficiency, small in size, good beam quality and high reliability. It can mark on all kinds of metal surfaces and some of the non-metal surfaces. Suitable for processing the need engraving, smoothness and accuracy, such as barcode, two-dimension code, graph and character marking. We can supply the fiber laser marking machine at 10W, 20W and 50W, also we can make the machine at the customer’s required technological data.


    Product Application
    Fiber laser marking machine can work with metal marking application, such as Stainless steel, Gold, Silver, Brass, Aluminum, Steel, Iron etc, and also mark on many non-metal materials, such as ABS, Nylon, PES, PVC.


    Technical parameters:


    Model No.LD-FMK-4075 Fiber Marking Machine
    Laser Power75W
    Wavelength1064nm
    Beam quality M2<1.5
    Adjusting Q frequency20—100KHz
    Marking range (mm)100×100
    Marking depth≤0.1mm
    Linear speed≤9000mm/s
    Min line width0.008mm
    Min character0.3mm
    Repeat accuracy±0.001mm
    Power supply220V±22V/50Hz /7A
    Overall power consumption200W
    Main machine dimension535 mm X435 mm X710 mm
    Weight of Whole machine60KG
    Control system dimensionIntegration

    Features:


    1). Excellent laser beam quality: Compared with traditional solid laser marking machine, fiber laser marking machine use base module (TEMOO) output, diameter of focal spot is less than 20um. Divergence angle is only 1/4 of semi-conductor pumping Laser. It is special suitable for precision marking.
    2). Maintenance-free, long service life:Small wastage, high stability, not be affected by the outside dirt, steam and mechanism loosed, can be normal used under the abominable environment, such as high concussion, high temperature and dust, etc. using laser diode as the pumping source, totally enclosed type light path design. mean-time to double failure is over 100 thousand hours.

    3). Fast processing speed:Its processing speed is 2-3 times of traditional laser marking machine.

    4). Low processing cost: Optical-electric transferring efficiency is 30%, power consumption is less than 200 W, which is only 1/20 of light-pumped solid-state laser marking machine, greatly saving energy expenditure for long term usage.

    5). Maintenance Free: No need maintenance of laser medium. Do not need adjust or clean the lens.


    Key Components of the machine:


    Fiber laser adopts IPG from U.K.

    Laser scanner head imported from Germany

    Red light for fixed marking location, foot switch and rotary clamp equip with machine.
