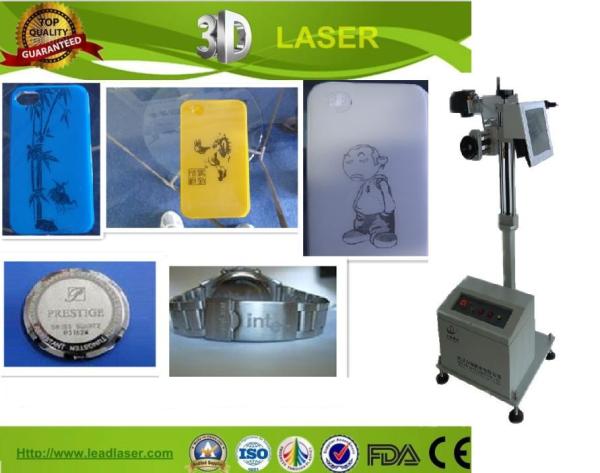

LD-FMK-4035 35W Flying Style Fiber Laser Marking Machine For Foodstuff Metal
Package Materials
Product Description:
The Fiber laser date code machine adopts the top laser technology
in the world wide. The fiber laser outputs the laser and scanner
system finishes the scanning process. The fiber laser is air
cooled, and it has the advantage of high electric-optic efficiency,
small in size, good beam quality and high reliability. It can mark
on all kinds of metal surfaces and some of the non-metal surfaces.
Suitable for processing the need engraving, smoothness and
accuracy, such as barcode, two-dimension code, graph and character
marking. We can supply the fiber laser marking machine at 10W, 20W,
30W, 40W and 50W, also we can make the machine at the customer’s
required technological data.
Application

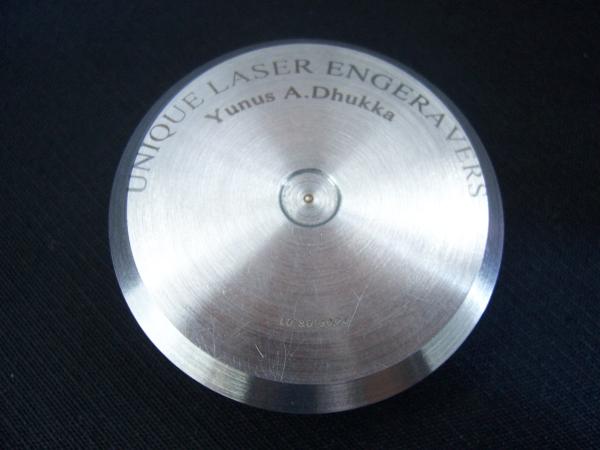

Our fiber laser marking machine is mainly applied on metals and
some non- metals, especially designed for the industrials have high
requirements in depth, smoothness and fineness, such as sanitary
ware, medical appliance, glasses, clocks, watches, automobile
fittings, plastics, paper, electronic hardware.
Features:
1). Excellent laser beam quality: Compared with traditional solid laser marking machine, fiber laser
marking machine use base module (TEMOO) output, diameter of focal
spot is less than 20um. Divergence angle is only 1/4 of
semi-conductor pumping Laser. It is special suitable for precision
marking.
2). Maintenance-free, long service life:Small wastage, high stability, not be affected by the outside dirt,
steam and mechanism loosed, can be normal used under the abominable
environment, such as high concussion, high temperature and dust,
etc. using laser diode as the pumping source, totally enclosed type
light path design. mean-time to double failure is over 100 thousand
hours.
3). Fast processing speed:Its processing speed is 2-3 times of traditional laser marking
machine.
4). Low processing cost: Optical-electric transferring efficiency is 30%, power consumption
is less than 200 W, which is only 1/20 of light-pumped solid-state
laser marking machine, greatly saving energy expenditure for long
term usage.
5). Maintenance Free: No need maintenance of laser medium. Do not need adjust or clean
the lens.
Technical parameters:
| Model No. | LD-FMK4035 Fiber Marking Machine |
| Laser Power | 35W |
| Wavelength | 1064nm |
| Beam quality M2 | <1.5 |
| Adjusting Q frequency | 20—100KHz |
| Marking range (mm) | 100×100 |
| Marking depth | ≤0.1mm |
| Linear speed | ≤9000mm/s |
| Min line width | 0.008mm |
| Min character | 0.3mm |
| Repeat accuracy | ±0.001mm |
| Power supply | 220V±22V / 50Hz / 7A |
| Overall power consumption | 200W |
| Main machine dimension | 535 mm X435 mm X710 mm |
| Weight of Whole machine | 60KG |
| Control system dimension | Integration |
Installation and training
1.Without sending engineer Manual and video will be sent to you for
training and learning
how to install machine. Internet remove assistance is available
24hs everyday.
2.With engineer Engineer will be sent to your country for one week,
dealing with the installation and training.User need to take care
of tickets, accommodation, food and cooperating with the engineer
we dispatch.
3. If you are here you get 5 days for free training, if you are in
our factory. We will learn you any basic information about the
machine.
After-sales services:
1. International quality certificate, FDA,CE.
2. 100,000 hours lifetime, free maintenance.
3. 24 months warranty against manufacture defect.
4. Engineers available to service machinery overseas.
5. Free training for machine installation and operation.
6. Free samples marking of customer provided.
7. 24 hours technician professional and timely after-sale service.
