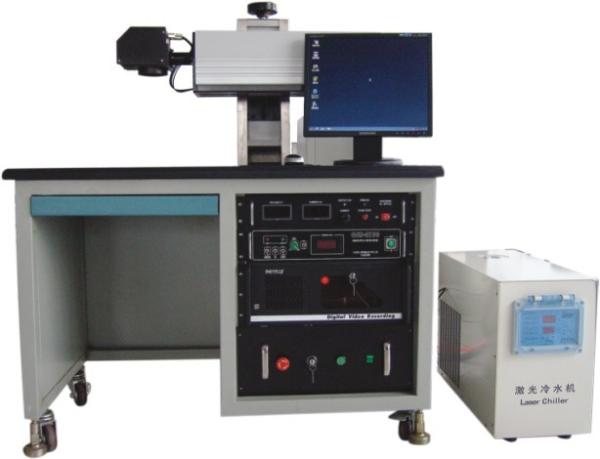

28W Desk Style UV Laser Marking Machine For Nonmetal Packaging Materials And Medicine Plastic Containers

Applied materials:

Brittleness material like fire-proof material, glass, ceramics, monocrystalline silicon and polycrystalline silicon etc. Special material like small Flexible Printed Circuit etc

Applied Industries: It can be applied for precision marking, micro-processing and cold processing in micro-electronics industry. Marking, scribing, carving, cutting and surface processing on various type of chips, flexible printed circuit board, ultra-thin glass, LCD screen, textile, sheet ceramic, semiconductor wafer, IC grain, sapphire, polymeric film, brittleness material and Special plastic packaging etc.

Features:

1. Adopt high quality UV laser source, wave length is 355nm

2. Compare with normal laser marking machine, the focused spot of UV laser is smaller and marking result is better precision. It has incomparable advantage than other laser machines for applied precision marking, precision cutting and micro processing on the special materials.

3. It suitable for precision micro machining, cold processing. Compare with infrared diode pumped machine, it has higher absorption rate of metal, monocrystalline silicon, polycrystalline silicon, industrial ceramics, glass etc, can used for marking, cutting, scribing and cutting for small Flexible Printed Circuit.

Parameter:

1. Laser Medium ND:YVO4

2. Laser Wavelength 355nm

3. Average Output Power 355nm

4. Peak Power: ≥28W@30KHZ

5. Marking Range (mm) 100×100(can be enlarged at 160×160, 250x250 or 300x300 optional)

6. Marking Speed 15000mm/S

7. Maintenance Free

8. Repeat Accuracy ±0.01mm

9. Cooling System Water cooler

10. Main Machine Dimension(mm) 530X430X710

11. Weight of Whole Machine 60KG

12. Power Supply 220V±22V/single phase/ 50Hz /10A

13. Overall Power Consumption 200W

14. Control System Dimension integration

Main Features

1. High speed with galvanometer;

2. Small volume,light weight;

3. Low power,consumption power is less than 500w;

4. Completely air cooling ,low energy;

5. No influence of the srvere environment and temperature change.If no power ,battery and car cigarette lighter can be used for working;

6. Greatly reduce the depreciation cost,satisfying customers' stable large quantities producing.

Wuhan Lead Laser Co., Ltd. is a high-tech corporation located in the Optics Valley of China, Wuhan. It’s a professional manufacturer for the various laser applied equipment and laser processing research, develop, produce and sales under famous laser professor leading.

Main Products:

1. Laser marking machine series (YAG SSLE diode pumped laser marking machine, CO2 laser engraving & cutting machine, fiber laser marking machine, special applied laser equipment for combination of various laser and machine automation).

2. Laser coding machine series (on-line green laser subsurface engraving & surface coding machine-- International initiative for the invention patent, on-line CO2 flying laser coding machine—coding on various nonmetallic packing materials, on-line fiber coding machine—coding on various nonmetallic and metallic packing materials).

3. Laser subsurface engraving machine series (mini personalized 3D portrait laser subsurface engraving machine, 3D portrait laser subsurface engraving system transferred directly from 2D normal photo, large scale crystal laser subsurface engraving machine, large scale glass laser subsurface engraving machine, multi heads laser subsurface engraving machine and so on).

4. Special applied laser equipment for solar cells and other different industrials.

5. Supply and realize the integration schemes for laser coding and Logistics Management Information Services System for anti-faked code and area code.

Our company series products own many invention patents and utility model patents, exported to more than 30 countries all over the world and also take a certain share of domestic market.

With the faith of “Unity, Hardworking, Pragmatic, Innovative”, insisting on the principle of “Professional, Quality, Service”, Wuhan Lead Laser Co., Ltd. is doing its best to provide the topping products and service for every client.
