6W Desk Style UV Laser Marking Machine for Medical Plastic Packaging Box and Bottles

Product Introduction

Perfect Laser UV laser is cold ligh source. UV laser with short wavelength,focus,smaller spot,belongs to cold process with a little heat affecting,good beam quality, it can achieve hyperfine marking.Most materials can absorb ultraviolet laser,it is widely applied on industrials; with very little heat affecting area, it won't have heat effect,there is no burning problem,pollution-free,non-toxic,high marking speed,high efficiency,the machine performance is stable,low power consumption.

Product Application

(1) It is widely used in electronic components, battery chargers, electric wire, computer accessories, mobile phone accessories (mobile phone screen, LCD screen) and communication products.
(2) Automobile and motorcycle spare parts, auto glass, instrument appliance, optical device, aerospace, military industry products, hardware machinery, tools, measuring tools, cutting tools, sanitary ware.
(3) Pharmaceutical, food, beverage and cosmetics industry.

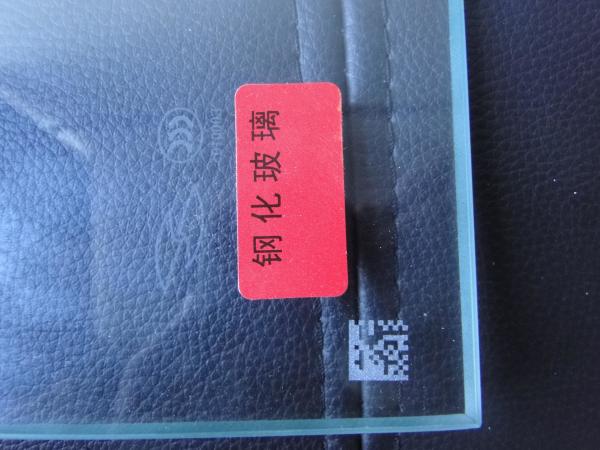

(4) Glass, crystal products, arts and crafts of surface and internal thin film etching, ceramic cutting or engraving, clocks and watches and glasses.
(5) It can be marked on polymer material, majority of the metal and non-metallic materials for surface processing and coating film processing, pervious to light polymer materials, plastic, fire prevention materials etc..

Parameter:

Laser Medium ND:YVO4

Laser wavelength 355nm

Average Output Power ≥6W@30KHZ

Peak Power: ≥10KW

Power Supply AC220V±15% 50Hz

Marking range (mm) 100*100(can be enlarged at 160x160, 250x250 or 300x300 optional)

Marking speed 15000mm/S

Repeat accuracy ±0.01mm

Cooling system Water cooler

Main machine dimension(mm) 530X430X710mm

Weight of whole machine 60KG

Power supply 220V±22V/single phase/ 50Hz /10A

Overall power consumption 200W

Control system dimension Integration

Why fiber laser marking machine is better?

Old laser machines such as: Nd:YAG lamp pumped laser markingm machine, Diode pump laser marking machine, CO2 laser marking machine all need maintenance the laser source(replace lamp or diode laser modular every year), also require an water chiller to cool.
While fiber laser can provide:
1. Producing higher quality beam, higher photoelectric conversion, high accuracy, the marking quality is best with cheaper price.
2. Small Size wtih Air cooling,no water chiller.
3. No maintenances laser source(100,000 hours service time without routine replacement of consumables), Easy to adjust focus and use by unskilled operator, Low power consumption.
